CBP270

No.170FMN‑M
Single cylinder, 4-stroke, air-cooling, camshaft upward
Main Performance Features
SN Items Description
1 Toothed timing‑chain drive:  7‑piece toothed‑chain ensures stable valve‑train operation and low engine noise.
2 Cylinder‑head appearance:  Compact and elegant design with excellent heat dissipation performance.
3 Hot‑assembled crankcase:   crankshaft axial‑play noise and improves overall engine performance.
4 External balance‑shaft structure:  Reduces engine vibration, improves riding comfort and facilitates maintenance.
5 Piston back‑cooling technology:  Effectively prevents piston crown burn‑through and piston‑ring seizure.
6 High‑quality piston rings:  Dual DLC+PVD coated piston‑rings, outstanding wear‑resistance and long service‑life, effectively mitigate oil‑burning issues.
7 Dual‑start solution:  Both electric‑start and kick‑start to satisfy various user requirements.
Download
View all downloads
  • CBP270,MY SHOP,CBP270-MY SHOP
  • CBP270,MY SHOP,CBP270-MY SHOP
  • CBP270,MY SHOP,CBP270-MY SHOP
  • CBP270,MY SHOP,CBP270-MY SHOP
  • CBP270,LITTLEDONKEY-ENGINE,CBP270-MY SHOP

Description

Main Technical Specifications
SN Parameter Value
1 Engine Model 170FMN‑M
2 Engine Common Name CBP270 (External Balance Shaft, Oil Cooled)
3 Engine Type Single cylinder,4-stroke,air-cooling, camshaft upward
4 Displacement 270.1 ml

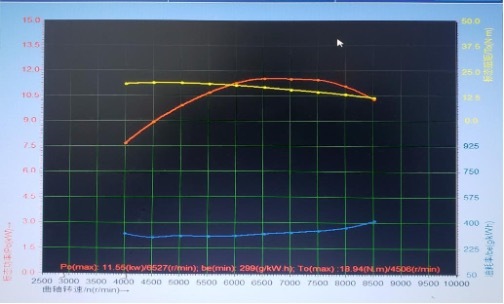

5 Max. Power 12.5 kW /6500 r/min
6 Max. Torque 19 N·m /5000 r/min
7 Compression Ratio 8.8:1
8 Bore × Stroke 70 mm ×70.2 mm
9 Ignition Method CDI
10 Lubrication Mode Pressure and Splash
11 Min. Fuel Consumption ≤354 g/kW·h
12 Starting Method Electric / Kick start
13 Clutch Manual Wet Multi‑Plate
14 Gearshift Constant‑mesh two‑stage transmission, 5‑speed

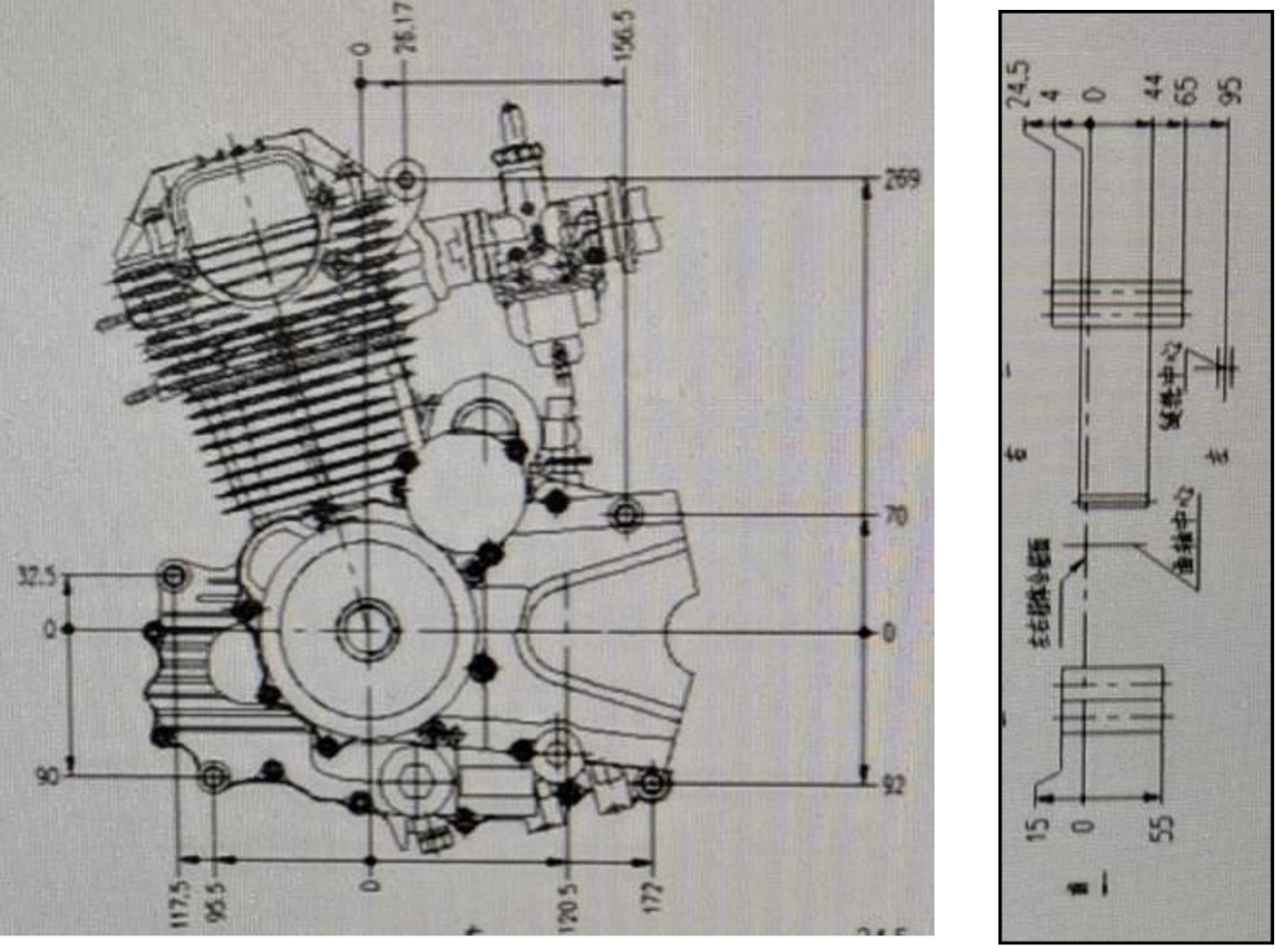

15 Package Size 385 ×365×500
16 Package Weight
