| Main Technical Specifications | ||
| SN | Parameter | Value |
| 1 | Engine Model | 180MP‑S |
| 2 | Engine Common Name | KBS350 (Water‑Cooled DOHC Four‑Valve) |
| 3 | Engine Type | Single‑cylinder,4‑stroke,water‑cooled,DOHC,four‑valve,built‑in balance shaft |
| 4 | Displacement | 326.7 ml |
| 5 | Max. Power | 24 kW /8500 r/min |
| 6 | Max. Torque | 30 N·m /7000 r/min |
| 7 | Compression Ratio | 0.459027778 |
| 8 | Bore × Stroke | 80 mm ×65 mm |
| 9 | Ignition Method | CDI |
| 10 | Lubrication Mode | Pressure and Splash |
| 11 | Min. Fuel Consumption | ≤354 g/kW·h |
| 12 | Starting Method | Electric / Kick start |
| 13 | Clutch | Manual Wet Multi‑Plate |
| 14 | Gearshift | Constant‑mesh two‑stage transmission,5‑speed |

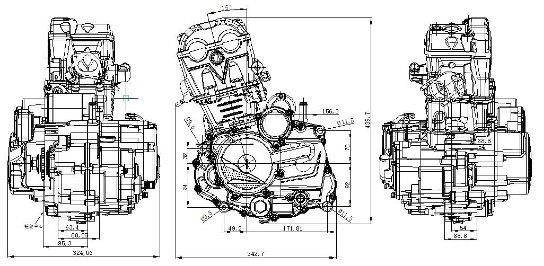

| 15 | Package Size | 435 ×385 ×520 |
| 16 | Package Weight | |
| Main Performance Features | ||
| SN | Items | Description |
| 1 | Cooling system: | Off‑road‑special built‑in water‑channel design; integrated dynamic‑static water‑seal for consistent sealing performance. |
| 2 | Lubrication system: | Two‑stage filtration; coarse filter on left housing, detachable paper‑element fine filter on right cover. |
| 3 | Optimized balance‑shaft system: | Low‑vibration, comfortable riding; ground‑balance gear & spring‑damping structure to suppress gear noise. |
| 4 | Light‑weight piston & rings: | Piston crown micro‑arc‑oxidation, skirt molybdenum‑disulfide treatment; DLC+PVD piston‑rings to cut friction loss. |
| 5 | Valve‑train: | 1. 7‑piece toothed timing‑chain, low‑noise tensioner; 2. DOHC dual overhead camshaft, independent intake/exhaust cam; 3. tappet direct‑driven valves for high‑speed power and reliability. 4. Four‑valve design for higher charging‑efficiency. |
| 6 | Transmission system: | 6‑column‑7‑plate clutch with Fuji friction plates; large‑diameter shift‑drum for sensitive & reliable shifting. |
| 7 | Combustion optimization: | Four‑valve cylinder‑head, special‑shape combustion‑chamber, optimized port & cam profile for improved power‑torque output. |
| 8 | Cylinder- head | Reliable composite steel‑rubber gaskets for cylinder‑head, right‑cover and tensioner housing, reusable after disassembly. |
| 9 | Easy maintenance: | Split‑design right crankcase‑cover for fast clutch‑plate replacement. |
| 10 | Optional configuration: | Carburetor / EFI(36‑2T); 5‑speed(electric+kick) /6‑speed(electric‑start only). |
