| Main Technical Specifications | ||
| SN | Parameter | Value |
| 1 |

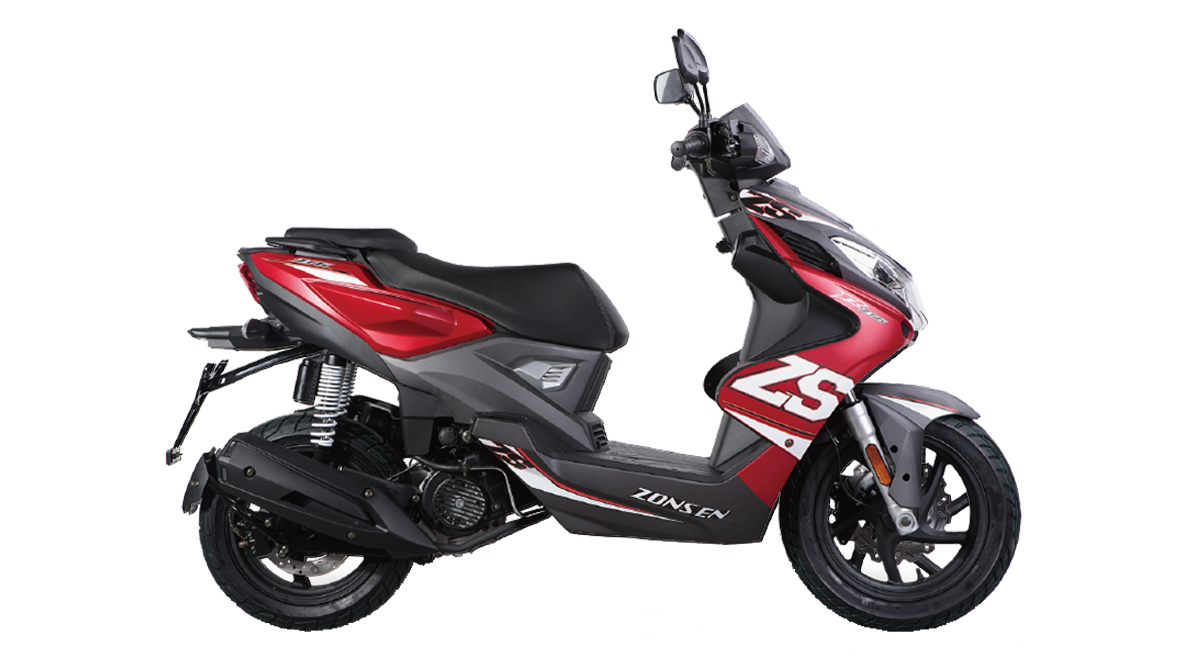

MODEL |
ZS125T-48 |
| 2 |
Engine Name |
PT125 -EFI | PT150 |
| 3 |
Engine Type |
Single Cylinder,4-Stroke,Air Cooling |
| 4 |
Displacement (ml) |
124.6 | 149.6 |
| 5 |
Bore × Stroke (mm) |
52.4×57.8 | 57.4×57.8 |
| 6 |
Compression Ratio |
9.5：1 |
| 7 |
Max. Power (kW/rpm) |
6.8/7500 | 7.3/7500 |
| 8 |
Max. Torque (Nm/rpm) |
9/6000 | 10.1/6000 |
| 9 |
Max. Speed (km/h) |
85 |
| 10 |
Fuel System |
EFI | Carburetor |
| 11 |
Ignition |
ECU | CDI |
| 12 |
Starting System |
Electric/Kick |
| 13 |
Brake |
Front:Disc;Rear:Drum |
| 14 |
Tire |
Tubeless Tire; Front:Front:120/70-14, Rear: 130/60-13 |
| 15 |
L×W×H (mm) |
1910 x 760 x 1170 |
| 16 |
Wheelbase (mm) |
1345 |
| 17 |
Seat Height （mm） |
790 |
| 18 |
Min. Ground Clearance (mm) |
130 |
| 19 |
Curb Weight (kg) |
121 |
| 20 |
Fuel Tank Capacity (L) |
6 |
| 21 |
Container Loading Quantity (40'HQ) |
52 |
